DRWD40'S STREAMING GEAR

Over my few years of outdoor livestreaming I've slowly evolved my streaming gear into a few different setups. Getting started in outdoor streaming can seem like a tough endeavor, but I hope the resources here can help set you in the right direction!


If you have any questions on my educational outdoor livestreaming setup or getting your setup up and running, feel free to message me. You can also join the IRL Hub Discord. They are super helpful and were a vital resource when making my setup.

Different IRL Setups

Belabox on a Jetson Nano

SRT is the future! I recently switched from the LiveU to this new setup and am loving it. The Jetson Nano (if you can find one) is an amazing device. The setup can be complex and I have slightly different versions depending on the content so I have a dedicated page below.

Belabox Setup

LiveU

This used to be my go to setup, was very convenient, but it came at a cost and was quite power hungry. On top of the price of a solo, for bonding you also need to pay ~$45/month for LRT service.

LiveU Setup

The Phone Stream

Non-LiveU RTMP (no network bonding)

Non-LiveU RTMP (no network bonding)

If your network is strong and overheating isn't a big issue, then use your phone! I've never streamed from my phone but apps like streamlabs, prism live, and larix are good places to start looking!


You have choices to stream direct to Twitch or choose an RTMP endpoint. The RTMP then sends your video to OBS so you can have overlays. A lot of resources exist for setting up the RTMP and associated programs like NOALBS (for auto scene changes and OBS control), so I won't get into details on that here. Here is a link for NOALBS and Nginx.

Non-LiveU RTMP (no network bonding)

Non-LiveU RTMP (no network bonding)

Non-LiveU RTMP (no network bonding)

There are some cheaper encoders that can encode and send video via RTMP. You will need an NGINX RTMP endpoint running on a cloud server or your home PC. These encoders aren't typically user friendly, and I remember quite a few headaches when I tried one.

Backpack Overview

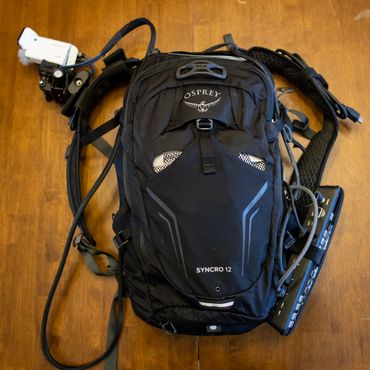

Osprey syncro 12 with ATEM mini and sony action cam

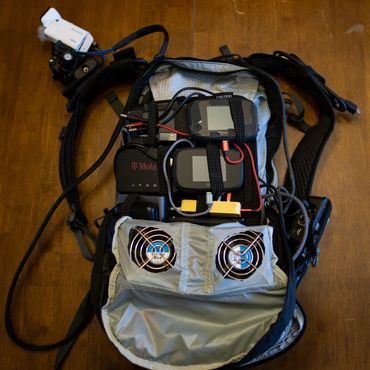

Modems, fans, and batteries inside backpack

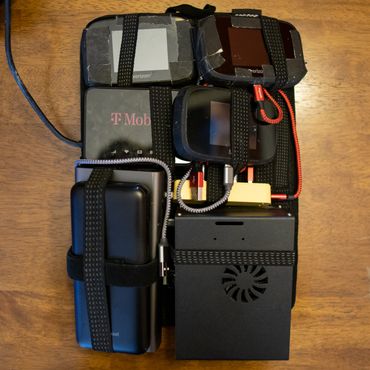

Jetson Nano, two batteries, usb hub, elgato camlink, and 4 modems on a cocoon grid it

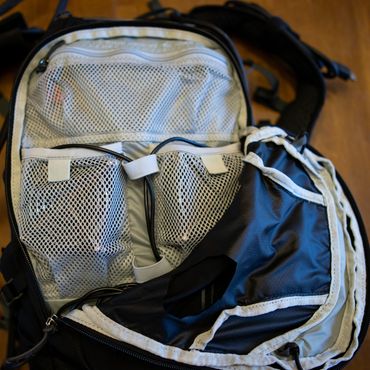

Two USB fans with holes for air flow

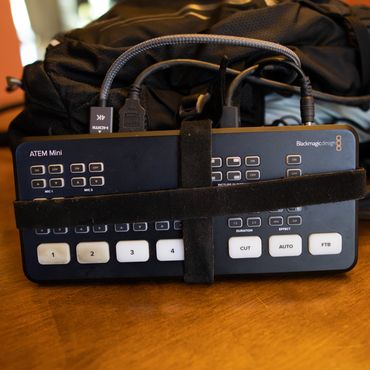

ATEM mini attached to side

Cameras and Mic

Sony FDR X3000

The go to shoulder cam, but no longer in production. Good luck finding one! Has a very hot mic input but great stabilization. USB/micro HDMI ports also very fragile so be sure to use a  Sony CPTR1 Cable Protector.

Amazon

Nikon P1000

The super zoom for most birding streams and all launch coverage. 3000mm zoom so great for those distant shots. Would not recommend if you want nice photos. Also requires a Field Monitor since screen goes black via HDMI out.

Amazon

Canon M50 Mark 2

Sometimes use this one for birding but mainly used for macro, home webcam, streak shots, nicer photos/video, and "vlogging" moments. Have Sigma 16mm f/1.4, Canon 28mm f/3.5 macro, Sigma 150-600mm f/5-6.3, and Canon kit 15-45mm f/3.5-6.3 lenses. I also have a SmallRig cage and HDMI cable clamp for protection.

Amazon

Saramonic UwMIC9

Great UHF wireless microphones. Run off AA batteries so I use the rechargeable  Panasonic Eneloop Pro Batteries with a XTAR VC8 Type C 3A Fast 18650 Charger

Amazon

DJI Action 4

DJI Action 4

The best wireless RTMP cam input Belabox that I've found that also allows a wireless mic connection (DJI Mic2).

Amazon

DJI Mic 2

DJI Mic 2

DJI Mic 2 is the best mic to connect to the Action 4 since it does not require the receiver.

Amazon

GoPro Hero 8

Would not recommend but I used it with the media mod from time to time. RTMP peaks at 4k bitrate so not great if you plan to use it for that and 1080p. Constant disconnects and loses most features in HDMI and live mode.

Amazon

Feiyu Pocket 2s

My go to as a dashcam and when I need lots of stabilization when biking or kayaking. Has its cons like no audio via HDMI out, screen goes off, and HDMI port can sometimes jiggle too much. I like the idea behind it though. Magnetic base is interesting too.

Amazon

Complete Gear List

IRL Gear:

Encoder: Jetson Nano 2GB running Belabox

Capture Card: Elgato Cam Link 4K

USB Hub: iDsonix 4-port 5V/2A

USB-A to Type-C Cable: JXMOX 0.8ft 3 Pack

USB-A to Type-C Cable: Etguuds 2-Pack, 1ft

Metal Case: Jetson Nano Metal Case/Enclosure

Fan: 5V Cooling Fan

USB Sound Card (if not using ATEM): CableCreation USB Audio Adapter

WiFi Adapter: TP-Link TL-WN725N

Organizer: Cocoon GRID-IT

Chat Phone: Plum Gator 7 Rugged Phone running Stream Buddy for chat

Wrist Phone Holder: Newppon 180° Rotatable Armband

Tripod: Neewer 2-in-1 Aluminum Alloy Camera Tripod

Monopod: Avella CD324 Carbon Fiber Monopod with Fluid Head

Selfie Stick: Ulanzi MT-16 Extendable Mini Camera Tripod

Quick Release Plate: Mini plate but I recommend Kondor Blue if available

Car Phone Holder: Anwas Car Phone Holder Mount

Car Camera Mount: Fantaseal Suction Cup Mount

Gimbal: Zhiyun Crane Plus 3

HDMI Live Switcher: Blackmagic Design ATEM Mini HDMI Live Switcher (requires 12V input from barrel connector)

Modems: Verizon Wireless Jetpack 7730L, MiFi 7000 for AT&T, T-Mobile Test Drive with Mint Mobile Sim (referral link)

Shoulder mounts: Stuntman Pack Mount

Wind Blocker: Rycote Micro Windjammers

Server Software: Nginx + NOALBS, VoiceAttack, and Streamer.bot runs on home streaming PC (see below)

Stream Output: See Streaming PC

Backpack: Osprey Syncro 12

Tape: Gaffers Tape and lots of it

Phone HDMI Out Adapter: Apple Lightning to Digital AV Adapter


Batteries:

Batteries get their own section. Some work with Belabox (indicated with an *) and some do not. Some are also too large for air travel (>100Wh).  Some are also for field monitors and cameras.


Renogy 72000mAh 266Wh 12v Power Bank with 60W PD* (the tank when I need lots of power)

Charmast 23800mAh 20W PD* (power Nano, USB fans, and shoulder cam from same battery with no issue)

Charmast 23800mAh 65W PD*

Charmast 10400mAh (slim for charging chat phone when needed)

HSL 30000mAh PD 60W (has DC output but no longer available)

ROMOSS 30000mAh 18W (cheap one when I first started)

TalentCell 12000mAh (DC output but small)
Powerextra 2 Pack Replacement Sony NP-F970 Batteries (for field monitor)

Miady LP-E12 (Charger and batteries for Canon M50)

LP-E12 Dummy Battery (for Canon)

EN-EL20a Batteries & Charger (for Nikon)

Hero 8 Batteries and Charger


Streaming PC Specs:

GPU: Gigabyte GeForce GTX 1070 Ti Gaming 8G
CPU: AMD Ryzen 5 1600X
Motherboard: ASRock AB350 PRO4 ATX
RAM: TEAMGROUP T-Force Vulcan Z DDR4 16GB Kit (4 x 8GB) 3000MHz


Gaming/Editing PC Specs:

GPU: EVGA GeForce RTX 3070 Ti FTW3 Ultra Gaming

CPU: AMD Ryzen 9 5900X

Motherboard: MSI MPG X570 Gaming Edge WiFi

Cooler: ARCTIC Liquid Freezer II 360

RAM: G.Skill Ripjaws V Series 32GB DDR4 3600 CL 16-19-19-39

Case: CORSAIR 4000D Airflow

Power Supply: CORSAIR RM Series, RM850

Storage: Sabrent Rocket 1TB M.2 and 2TB Crucial SSD MX500


Peripherals:

Monitors (x3): AOC CQ27G2 144hz 2K

Monitor Stand: Huanuo Triple Monitor Stand

Microphone: Rode Procaster Broadcast Dynamic Vocal Microphone with Rode PSM1 Shock Mount

Mixer: Yamaha MG10 10-Input Stereo Mixer

Ground Loop Isolator: Pyle Mini Hum Eliminator Box

Greenscreen: LYLYCTY with homemade stand

Stream Deck: Elgato Stream Deck

Headset: CORSAIR HS70 Wireless Gaming Headset
Mouse: UtechSmart Venus Gaming Mouse
Cam: Logitech HD Pro Webcam C920 but typically use the Canon M50
Drawing Pad: UGEE M708 Graphics Tablet

Wireless Mic: Pyle 2 Channel Wireless Microphone System

Keyboard: Logitech G413

UPS: CyberPower CP1500PFCLCD PFC Sinewave UPS System


Old Stuff that I sometimes use:

Encoder: LiveU Solo and LRT for bonding

Encoder: URayCoder Wireless H.264

Bonder: RaspberryPi 3B with Speedify (garbage)

Spotting Scope: Gosky 20-60x60 HD Spotting Scope

Microphone: Tascam TM-2X


Metal Detecting:

Detectors:  Garrett AT MAX and Garrett AT Pro Metal Detector

Scoop: RTG Kick it Aluminum Beach Sand Scoop

Pinpointer: Garrett Pro-Pointer

Gloves: CLC Custom Leathercraft

Digger: Prospector's Choice 12"


Cycling and Kayaking:

Camera arm: YakAttack Boomstick

Fat tire Bike: Surly Pugsley

Touring Bike: Fuji Touring

Triathlon Bike: Felt B12

Indoor Trainer: Wahoo Kickr Core

Indoor Virtual Cycling Program: Rouvy

Kayak: Access 11.5


Note: some links are Amazon Associate links
